Canvas Text Layout (Pretext)

Chenglou's @chenglou/pretext text measurement engine removes DOM layout as the bottleneck for rich text UIs, enabling virtualization, responsive columns, and chat bubbles at ~500x faster measurement than getBoundingClientRect interleaving.

Announced in a 14-tweet thread (65,090 likes, 62,482 bookmarks — #2 in corpus by bookmarkCount): text layout was the last major blocker for flashier UIs in the AI era. Pretext is a few-kb library tuned against browser ground truth across languages (Korean mixed with RTL Arabic, platform emojis). Source: X/@_chenglou, 2026-03-28

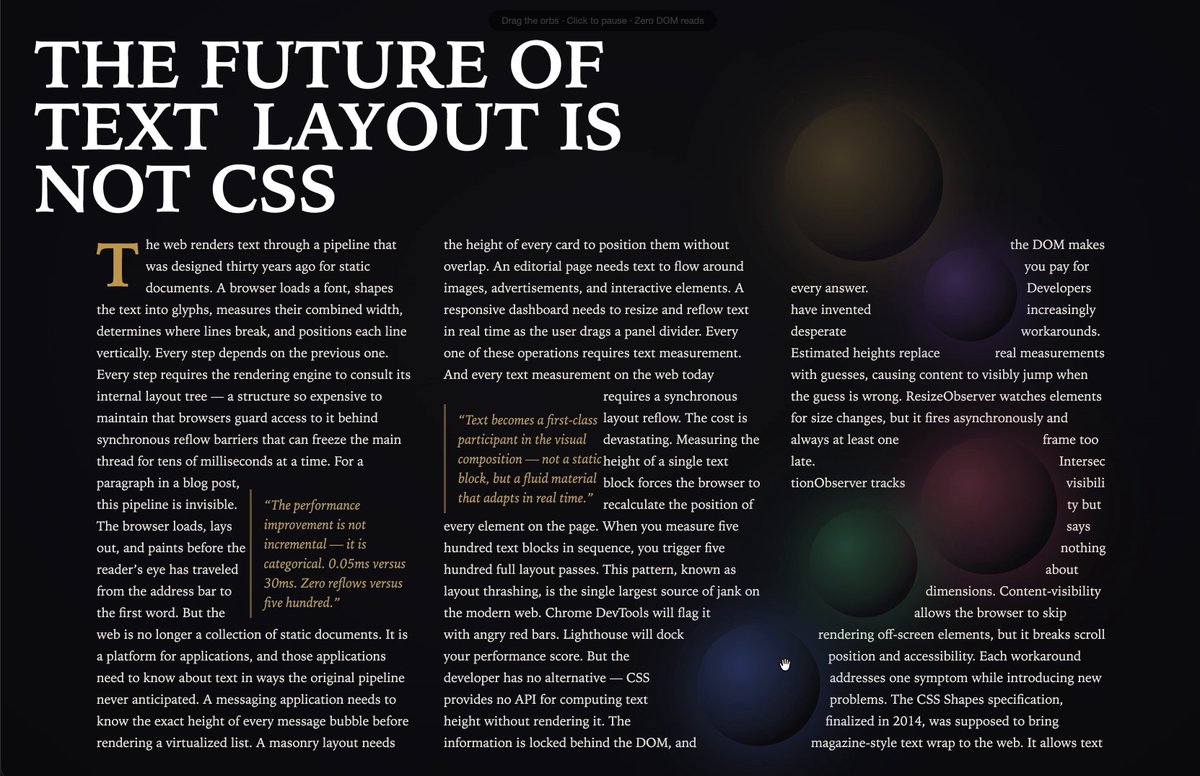

The reviewed artifact shows the practical shape: a dark editorial page with a giant serif headline, draggable colored occlusion objects, responsive paragraph flow around the objects, and a "Zero DOM reads" claim. The point is broader than speed. Pretext turns text into compositional material that can be measured, animated, virtualized, and arranged without asking the browser layout engine for every answer. Source: local media artifact, 2026-06-30

What it unlocks

1. Virtualization of hundreds of thousands of variable-height text boxes at 120fps without DOM measurement. Source: X/@_chenglou, 2026-03-28
2. Shrink-wrapped chat bubbles and multi-column responsive magazine layouts. Source: X/@_chenglou, 2026-03-28
3. Former CSS footnotes: auto-growing textareas, accordions, multiline centering, pure-canvas multiline text. Source: X/@_chenglou, 2026-03-28

Built with Claude Code and Codex iterating against per-width browser measurements over weeks. Source: X/@_chenglou, 2026-03-28

Install

npm install @chenglou/pretext (also bun). @chenglou/pretext@0.0.8 remains the current npm release on 2026-08-12; the MIT repository has 49,843 stars and remains at main HEAD ac49b09b7d83ede19581fa94a8b892b07d309baf. Project and demo glossary linked from thread. Source: npm registry; commit-pinned GitHub receipt, 2026-08-12

Adoption boundary

Pretext uses the browser's font measurement machinery, then performs line breaking and layout in data. Adopt it only for a measured text-layout bottleneck such as streaming chat, variable-height virtualization, Canvas/SVG/WebGL text, or server-precomputed geometry. A representative evaluation must compare its line ranges, heights, and scroll stability with the shipping browser across the exact fonts, font loading states, widths, letter spacing, emoji, bidi and CJK text, whitespace, word-break, and hyphenation cases. Preserve semantic DOM or an accessible equivalent for product text. The current API supports a bounded set of modes and explicitly leaves automatic hyphenation to the caller; a viral speed ratio is not a general compatibility guarantee. Source: chenglou/pretext@ac49b09, README and demos, reviewed 2026-08-12

Beyond layout: one text model, multiple renderers

The pmndrs canvas-text project is a distinct architecture signal, not evidence that one renderer has replaced Pretext. The public MIT repository now implements portable font baking, Rust/Wasm shaping, a retained renderer-neutral render plan, Bitmap/MSDF/Slug strategies, WebGPU with WebGL fallback, React Three Fiber and Three adapters, font stacks, nested spans, and offline or Worker baking. Its --check mode requires a byte-identical bake, and its benchmark plan separates browser visual-oracle evidence from structured HarfRust/HarfBuzz shaping comparisons. Source: X/@0xca0a 2083554840752353742; pmndrs/text@d970744d, README and project brief, reviewed 2026-08-12

Retain it as the frontier reference for products that genuinely need text in a canvas, 3D, XR, or renderer-neutral export path, but do not treat it as a stable production dependency yet: the package is private/unpublished at version 0.0.0, the public renderer-neutral host is not yet a stable subpath, and v1 is still in progress. Adoption requires exact-font and script shaping fixtures; clusters, bidi, CJK, emoji, ligatures and line breaks; IME, caret, hit-testing and selection proof if editing is in scope; atlas eviction and memory behavior; offline/runtime bake reproducibility; Worker failure recovery; zoom/DPR, WebGL/WebGPU and target-GPU parity; lifecycle/disposal and context-loss proof; and a semantic DOM/accessibility mirror whenever the text carries product meaning. Pretext remains the browser-ground-truth layout candidate; pmndrs/text defines the stronger multi-renderer contract around that job.

Relevance

Bridges GL-style landing pages and practical article layout without choosing one paradigm. See person page Cheng Lou (Chenglou) for author context.

Concept Position

---

Timeline

• 2026-08-12 | Replaced the saved-demo-only status with commit-pinned proof from the new public MIT pmndrs/text repository. Retained its renderer-neutral shaping/baking architecture while making the current private 0.0.0 package, unfinished public host, v1 status, conformance, lifecycle, editing, fallback, and accessibility boundaries explicit. Source: pmndrs/text@d970744d; X 2083554840752353742

• 2026-08-12 | Added the pmndrs canvas-text POC as a renderer-neutral architecture target—one shaped paragraph model across Slug/MSDF/bitmap and WebGL/WebGPU/native/TSL/React—while retaining Pretext and requiring source, license, conformance, atlas, fallback, accessibility, and performance proof. Source: X 2083554840752353742; local video

• 2026-08-12 | Rechecked npm and pinned repository evidence, then replaced the broad speed framing with an adoption boundary: exact-font/script/line-break parity, accessible text, scroll stability, and target-workload measurement are required. Source: @chenglou/pretext@0.0.8; chenglou/pretext@ac49b09

• 2026-07-01 | Concepts category refresh added this page to the Browser, computer use, and rendered verification family, linked it to Concept System Map, and kept it standalone because it owns this reusable mental model: Chenglou's @chenglou/pretext text measurement engine removes DOM layout as the bottleneck for rich text UIs, enabling virtualization, res... Source: User request, 2026-07-01

• 2026-06-30 | Deep-reviewed the local image/video artifact and refreshed versioning: @chenglou/pretext@0.0.8, repo main at ac49b09b7d83ede19581fa94a8b892b07d309baf, no tagged release. Promoted the visual lesson that Pretext makes live text composition possible without DOM-read loops. Source: X/@_chenglou, 2026-03-28; npm; GitHub, 2026-06-30

• 2026-03-28 | Pretext thread published; massive engagement. Source: X/@_chenglou, 2026-03-28

• 2026-06-01 | Concept page compiled from enriched bookmark 2037713766205608234. Source: compiled from enrichment, 2026-06-01

• 2026-06-12 | Top-25 absorption (#2): refreshed engagement counts; @chenglou/pretext install path confirmed in self-thread. Source: x-bookmark-absorb, 2026-06-12
